Showing all 14 results
Bridge Locating JigThe Bridge Locating Jig by Elevate Lutherie makes it simple to repeat-ably place bridges on instruments with common scale lengths. The jig self-centers on the neck and indexes off the nut end of the fingerboard. The sliding mechanism includes two drill bushings that can be used to drill into the jig rail to…
Dot DoctorThe Dot Doctor by Elevate Lutherie is the fastest, easiest way to accurately drill precisely placed holes for side dot inlays. Simply double stick tape a shim of your desired thickness to the Dot Doctor, align the indicator line with your pencil mark on your fretboard, clamp, and drill. It’s simple and repeatable!
Dot Driller The Dot Driller by Elevate Lutherie makes it quick and easy to create your own dots for inlay from a variety of materials. The tool is designed to be used in a drill press. Simply plunge the tool into the material like a drill bit. Retract the tool when it breaks thru the material…
Dot Locator Turn an ordinary hand held drill into a precise tool for fret marker inlays. The Dot Locator by Elevate Lutherie references the fingerboard taper and the fret slots to accurately and repeatedly position your drill bit in the perfect location for dot inlays. With two different widths of points that fit into the…
Fingerboard Locating Jig The Fingerboard Locating Jig by Elevate Lutherie is designed to take the guess work out of aligning a fretboard on a neck for glue ups. The jig easily and accurately locates in two different ways- via the truss rod slot or by clamping onto straight or tapered edges. This is achieve by…
Neck Angle Jig The Neck Angle Jig by Elevate Lutherie turns a common 6×48 stationary belt sander into a neck setting tool. No large, bulky jigs required. Simply attach the jig to your belt sander and use the adjustment knobs to set the pitch and angle of the neck. Built in lock knobs hold your…

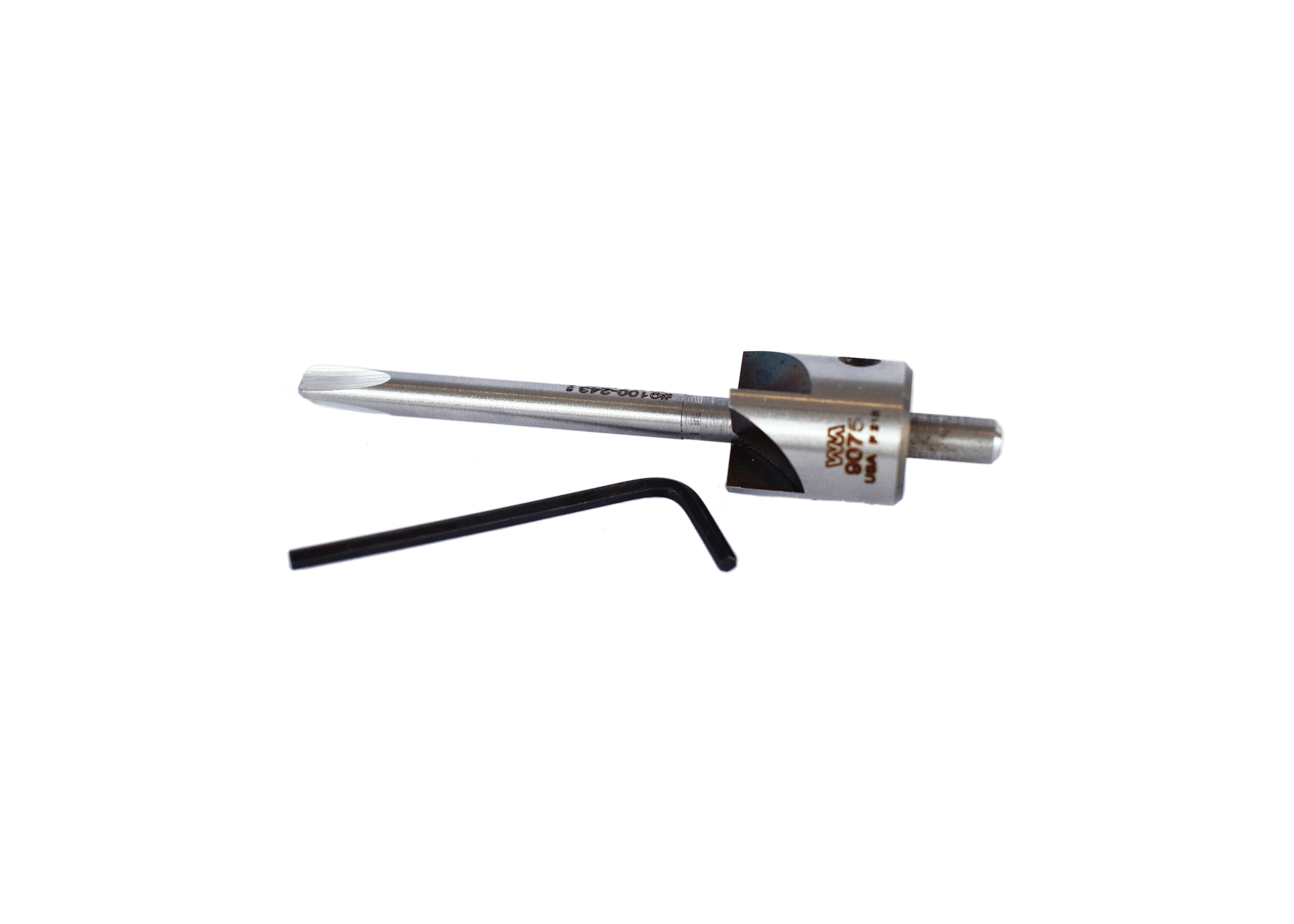

Neck Bolt Counterbore Easily recess your bolt-on neck hardware from outside the instrument with this Neck Bolt Counterbore by Elevate Lutherie. Our threaded insert and bolt set will fit these perfectly! Dimensions:3/4″ head diameter.240″ shaft diameter2 1/4″ + shaft length when head is attached
Original Rolling Pin Sander The Rolling Pin Sander by Elevate Lutherie is the perfect binding prep tool. Sand the sides of your instrument in a fraction of the time and ensure a flat surface across their width. It fits in a standard handheld drill- adding the benefit of variable speed control. But it’s not just…
Pinless Bridge Drilling Jig Drill pinless style bridges with ease and accuracy with the Pinless Bridge Drilling Jig by Elevate Lutherie. The jig’s tilting table allows you to set the angle of the string holes with the turn of a knob. The steel drill plates give you multiple options for string spacings and ensures you’re…
Precision Circle Cutter The ELEVATE Precision Circle Cutter makes cutting tight fitting inlays simple and accurate. With an approximate cutting range of 2″d – 26″d (depending on cutter size), this tool can handle everything from small inlays to rosettes and radius dish blanks. The Precision Circle Cutter is designed to work with compact plunge routers….
Rolling Pin Sander V2 The Rolling Pin Sander V2 by Elevate Lutherie is the perfect binding prep tool. Sand the sides of your instrument in a fraction of the time and ensure a flat surface across their width. It fits in a standard handheld drill- adding the benefit of variable speed control. But it’s not just…
Ultimate Binding Jig The Ultimate Binding Jig by Elevate Lutherie takes one of the most difficult tasks in lutherie and simplifies it. By cutting channels parallel to the sides rather than perpendicular to them, the Ultimate Binding Jig ensures that you get true, full depth channels around the entire perimeter of the instrument regardless of…
Variable Mortise & Tenon Drilling Jig Ever go to join the neck and body only to find the holes in the head block don’t line up with the hardware in the tenon? That’s the exact problem the Variable M&T Drilling Jig by Elevate Lutherie solves. By using precision stainless steel drill guides that index into…
Variable Mortise & Tenon Routing Jig The Variable M&T Routing Jig by Elevate Lutherie makes it simple to route the body connection joint regardless of the neck set angle. With a sliding routing template that forms both the mortise and tenon as well as multiple side screw positions for the angle plate, this jig gives…
