Atrium Articulating Boom Lift 60′ Height x 30′ Reach, Electric Discount

Description

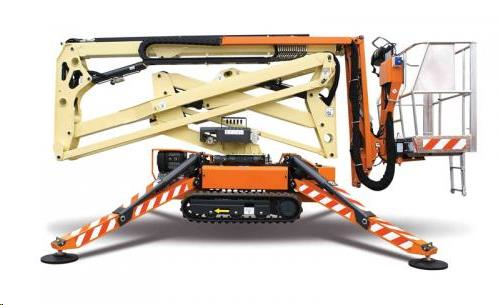

Atrium Articulating Boom Lift 60′ Height x 30′ Reach, Electric

MODEL- JLG..X600AJ ARTICULATING BOOM..TRACK..ELECT.

• DIMENSIONS- Stowed L= 16′ 5″/ W= 31″, 43″ w/ Tracks Extended/ H= 6′ 6.5″
• OUTRIGGER FOOTPRINT- 10′ 7″ x 10′ 7″ (Self Leveling)
• WEIGHT- 6,350 lbs.
• WORKING HEIGHT- 65′ 3″
• PLATFORM HEIGHT- 59′ 3″
• HORIZONTAL REACH- 30′
• PLATFORM DIMENSIONS- 58″ x 30″
• PLATFORM CAPACITY- 500 lbs.
• PLATFORM ROTATION- 124°
• JIB RANGE- 89° (0° to -89°)
• TURNTABLE ROTATION- 360° Non-Continuous
• UP & OVER CLEARANCE- N/A
• TURN RADIUS- Zero
• TRAVEL SPEED- .9 MPH
• TRACKS- Non Marking, Length- 4′ 10″
• GRADEABILITY- 28% -Stowed Only-
• SLOPE TOLERANCE- 15°
• GROUND PRESSURE- 9.28 PSI onTracks / 44 PSI on Outriggers
• POWER- 72 Volts DC 100 Amp hr. Lithium Ion Battery
