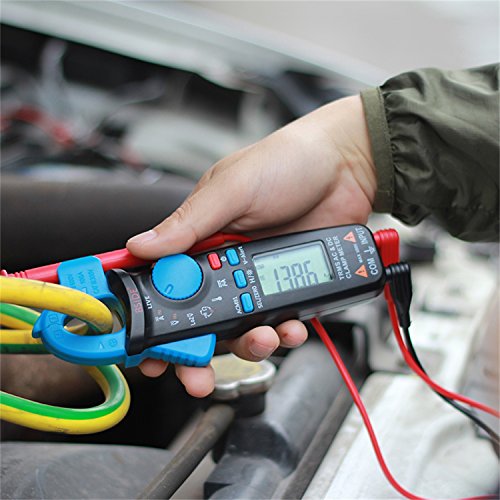

Bside ACM91 1mA Clamp Meter AC/DC Current TRMS Auto-Ranging 6000 Counts Capacitance Live Check V-Alert Tester with Pocket Clip Online now

Description

Bside ACM91 1mA Clamp Meter AC/DC Current TRMS Auto-Ranging 6000 Counts Capacitance Live Check V-Alert Tester with Pocket Clip

Color: Blue

Features:

• This Mini True RMS 6000 Counts clamp meter measures DC and AC current by jaw from 1mA to 100A, DC and AC voltage to 600V
• Dual line display can show both ACV and Hz on the screen
• Live wire check, V-Alert measurement, Temperature measurement
• Slot for test leads design make single-hand measurement simple and easy

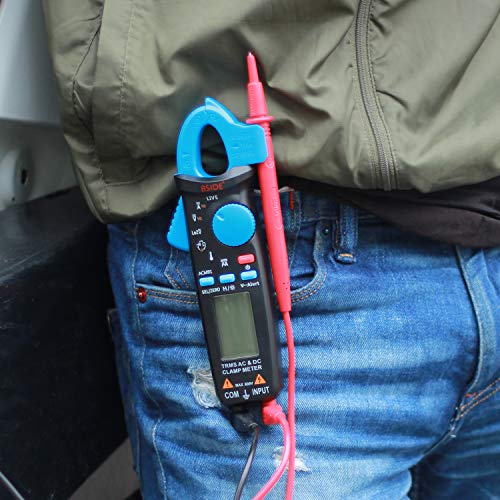

• The back clip design make it more portable

Details: Features:
Measure both DC current and AC current (minimum 1mA by jaws)
Measure microamps μA (minumum 0.1μA by terminals)
Measure AC and DC voltage
Measure frequency
Low impedance voltage measurement
Measure resistance, continuity and capacitance
Measure temperature
Live check function
V-alert measurement
Clamp on frequency function
Auto range
Data hold
Auto power off
Back light
Conform to the IEC-61010-1, IEC-61010-2-030, IEC-61010-2-032, IEC-61010-2-033 standards
Over-voltage protection class CAT III 300V, CAT II 600V, pollution degree II

Specifications:
Display: 6000 counts
DC current: 6A/60A/100A 0.001A/0.01A/0.1A ±(3.0%+5counts)
DC current(μA): 0-200μA 0.1μA ±(0.8%+5counts)
AC current: 6A/60A/100A 0.001A/0.01A/0.1A ±(2.5%+5counts)
DC voltage: 6V/60V/600V 0.001V/0.01V/0.1V ±(1.0%+3counts)
AC voltage: 6V/60V/600V 0.001V/0.01V/0.1V ±(1.0%+3counts)
Low impedance LOZ: Max 600V Resolution 0.1V
Resistance:
600Ω/6kΩ/60kΩ/600kΩ/6MΩ 0.1Ω/0.001KΩ/0.01KΩ/0.1KΩ/0.001MΩ ±(1.0%+3counts)
60MΩ 0.01MΩ ±(1.2%+20counts)
Capacitance: 600µF/6000µF 0.1µF/1µF ±(4.0%+3counts)
Frequency: 60Hz/1000Hz 0.1Hz/1Hz ±(1.0%+5counts)
Frequency(by jaws): 60Hz/1000Hz 0.1Hz/1Hz ±(1.0%+5counts)
Buzzer: If the resistance is less than 30Ω, the continuity beeper sounds.
Temperature: -20°C~500°C 1°C/2°F (2.0%+2counts)
Jaw Capacity: 20mm
Power: 1.5V (AAA) x 2 (not included)
Size: 179mm x 67mm x 36 mm
Weight: 137g

Package Includes:
1 x Digital Clamp Meter
1 x Test Leads
1 x Thermocouple
1 x User Manual
1 x Carrying Case

EAN: 6933540311906

Item Condition: New
