BSIDE ACM92 DC Current Clamp Meter 6000 Counts Digital Ammeter Amp Voltage Frequency Resistance Live Check V-Alert Tester Fashion

Description

BSIDE ACM92 DC Current Clamp Meter 6000 Counts Digital Ammeter Amp Voltage Frequency Resistance Live Check V-Alert Tester

Features:

• [Upgraded Clamp Meter]: Upgraded chips make it more steady and accurate when measuring low current, especially super low level current, greatly enhance testing experience.

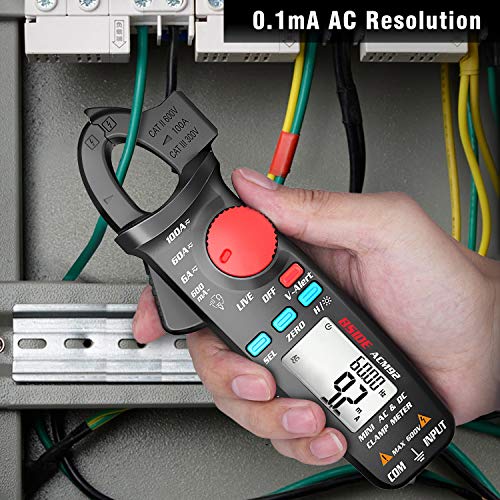

• [0.1mA AC Resolution]: Delivers 0.1mA AC resolution and sensitivity.

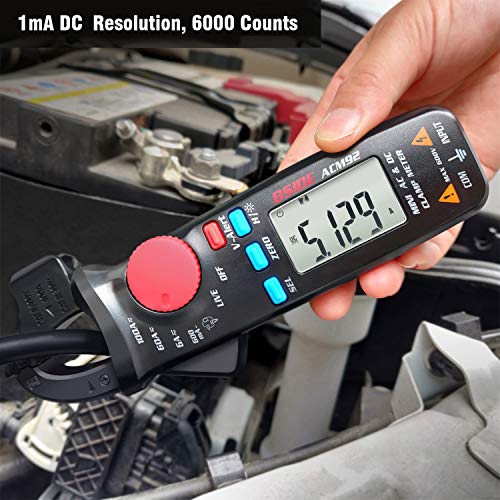

• [1mA Resolution]: Delivers 1mA resolution and sensitivity, which make it a great a tool for measuring such as parasitic draws.
• [Dual Line Display]: Dual line display can show both AC voltage/current and frequency on the screen.
• [Activate V-Alert at Any Function]: V-Alert function can be activated at any function not only greatly enhance testing experience, but also let you not worry voltage detector consumes too much space.

Details: Features:
Measure DC Current (minimum 1mA by jaws)
Measure AC Current (minimum 0.1mA by jaws)
Measure AC/DC voltage
V-alert measurement, live-wire check
Measure frequency, resistance and continuity
Clamp on frequency function
Auto power off, data hold, low battery indication with backlight
Conform to the IEC-61010-1, IEC-61010-2-030, IEC-61010-2-032, IEC-61010-2-033 standards
Over-voltage protection class CAT III 300V, CAT II 600V, pollution degree II

Specifications:
Display: 6000 counts
DC current: 6A/60A/100A 0.001A/0.01A/0.1A ±(2.5%+10 counts)
AC current:
600mA 0.1mA ±(3.0%+10 counts);
6A/60A/100A 0.1mA/0.001A/0.01A/0.1A ±(2.5%+10 counts)
DC voltage: 600V 0.1V ±(1.0%+5 counts)
AC voltage: 600V 0.1V ±(1.0%+3 counts)
Resistance: 6000Ω 1Ω ±(1.0%+3 counts)
Frequency: 60Hz/1000Hz 0.1Hz/1Hz ±(1.5%+5 counts)
Frequency(by jaws): 60Hz/1000Hz 0.1Hz/1Hz ±(1.0%+5 counts)
V-Alert: LCD display flashes and alarm buzzer sounds when detected AC voltage
Buzzer: If the resistance is less than 30Ω, the continuity beeper sounds
Jaw Capacity: 20mm
Power: 1.5V (AAA) x 2
Size: 179 x 67 x 36 mm
Weight: 137g

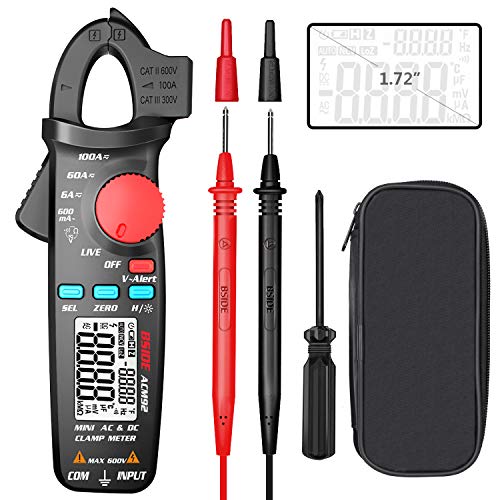

Package Includes:
1 x Clamp Meter
1 x Test Leads
1 x Carrying Case
1 x Screwdriver
1 x User Manual

Note:
The batteries are not included in the package due to Aviation Security Check.
