Bside Enhanced Wire Tracker RJ11 RJ45 Network Cable Tester Telephone Line Finder Toner LAN Network Cable Collation with RJ45 Crimp Connectors Fashion

Description

Bside Enhanced Wire Tracker RJ11 RJ45 Network Cable Tester Telephone Line Finder Toner LAN Network Cable Collation with RJ45 Crimp Connectors

Color: FWT81

Features:

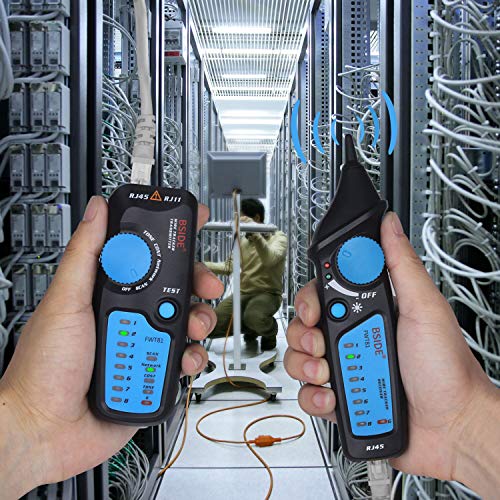

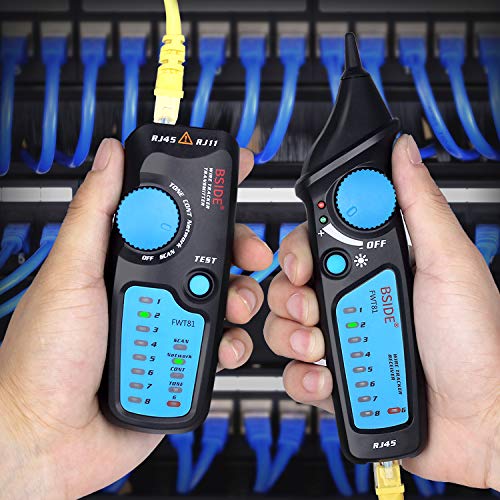

• [Multi-functional Wire Tracker]: This wire tracker can quickly find the target line pairs among numerous ones; Quickly locate the breakpoint without opening the wire’s cover; Test line level, positive and negative polarity; Test physical connection status of network cable; Test the status of telephone lines, etc.
• [High Efficient]: Upgrade high efficiency function switching dual knob design, both hands can operate the transmitter or receiver independently, which can save your time when compared to other wire tracker that require both hands.
• [Upgraded Safety Protection]: ABS insulated probe design greatly improves product safety standard, which protects you from the risk of electric shock. Conforms to CE, FCC, RoHS, IEC61010-1 600V CAT III, pollution class II safety standard.
• [Screwless Battery Compartment Cover]: Our battery compartment cover features a screwless design, which makes it easier to replace the battery when compared to other wire tracker.
• [Flashlight Design]: Upgraded flashlight can change the dark environment. Come with a portable bag and 6 RJ45 Crimp Connectors.

Details: Are you still troubled with the network wires?
Our Wire Tracker not only solve your problems easily, but also add fun to your life.

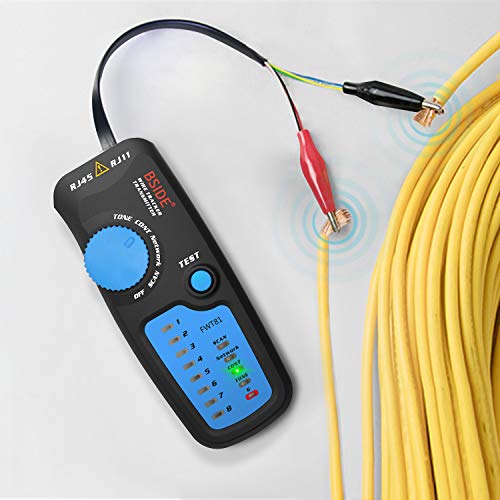

Wire tracker can quickly find the target line pairs among numerous ones
Wire tracker can quickly locate the breakpoint without opening the wire’s cover
Wire tracker can test line level, positive and negative polarity
Wire tracker can test the physical connection status of network cable, such as open circuit, short connection, miswire and reverse connection
Wire tracker can test the status of telephone lines, such as judging TIP or PING line and judging whether the telephone line is idle, ringing or off-hook

Specifications:
Operating temperature & relative humidity: 0-40℃, maximum 80%
Storage temperature & relative humidity: -10-50℃, maximum 80% (non-condensing)
Altitude: less than 2000m
Anti-explosion rating: IP40
Distance of emitting signal: more than 300m
Safety class: IEC61010-1 600V CAT III, pollution class II
Emitter battery: 6F22/9V (not included)
Receiver battery: 6F22/9V (not included)
Transmitter Size: 12×4.8×3.4 cm
Receiver Size: 17.5×4.5×3.5 cm
Weight: 0.18 kg

Package Includes:
1 x FWT81 Transmitter
1 x FWT81 Receiver
6 x RJ45 Connector
1 x Clip Adapter Cable
1 x RJ11 Adapter Cable
1 x Carrying Case
1 x User Manual

Note:
The batteries are not included in the package due to Aviation Security Check

EAN: 6933540313528

Item Condition: New
