Flash Hobby 4250 EVO Brushless Outrunner Motor Sale

Description

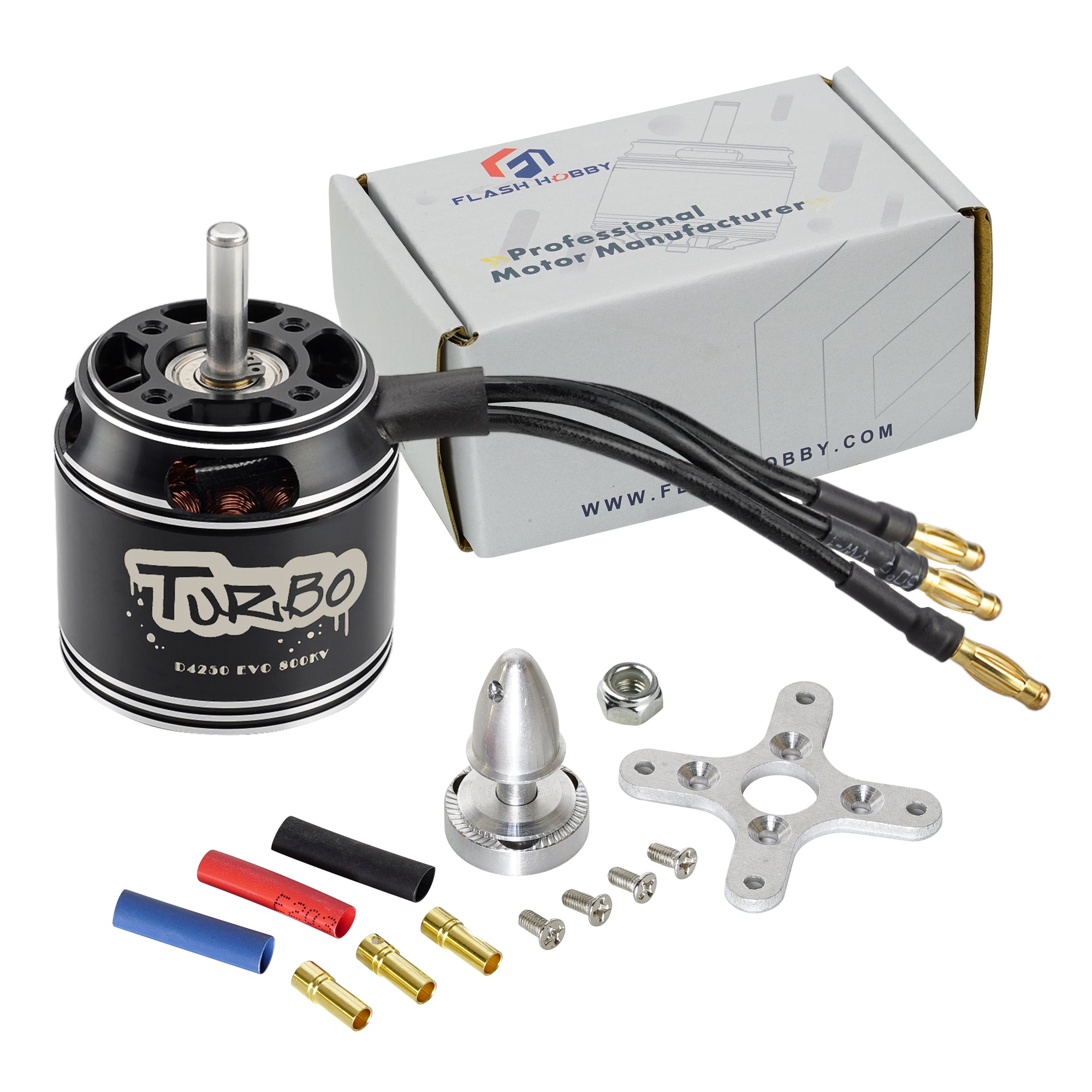

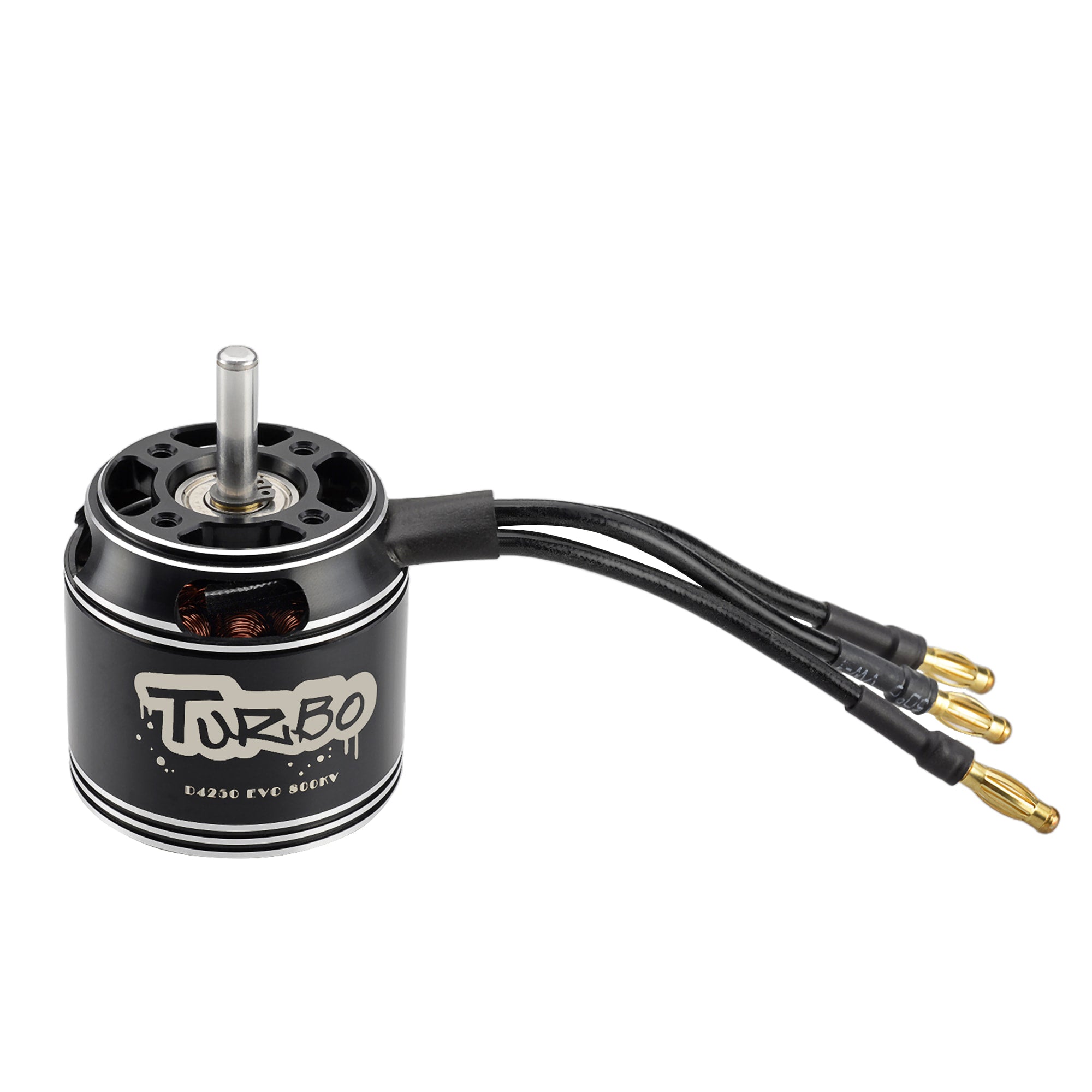

Flash Hobby 4250 EVO Brushless Outrunner Motor

Select desired KV option above when adding to cart.

Features:

• 48H Level Magnet
• Precision Balanced Rotor Test
• 14P12N High Torque Motor Design
• CNC 6061-T6 Aluminum Bell
• High RPM Imported(NSK/NMB) Bearing
• High Temperature Resistant Copper Wire Winding

Specifications:

• Weight: 211.3g(Including wires)
• Motor Size: 42.8 x50mm
• Shaft Size: 5.0*68.0mm
• Stator Diameter: 35mm
• Stator Height: 20mm
• Motor Mount: 25*25mm(M3*4)
• Configuration: 12N14P

Available KV options:

KV: 600KV
Max watts: 1252W
Max Current: 57.83A
No Load current: 1.39A/10V
Resistance: 32.0mΩ
Battery: 5-6S Lipo
Suggested Prop: 14 inch prop

KV: 800KV
Max watts: 1196.0W
Max Current: 60.74A
No Load current: 2.37A/10V
Resistance: 20.3mΩ
Battery: 5-6S Lipo
Suggested Prop: 12 inch prop

Click here to download more extensive 4250 EVO prop chart/test data
