HobbyWing Platinum Pro V4 Series 40A ESC Sale
Original price was: $41.99.$16.80Current price is: $16.80.
Description

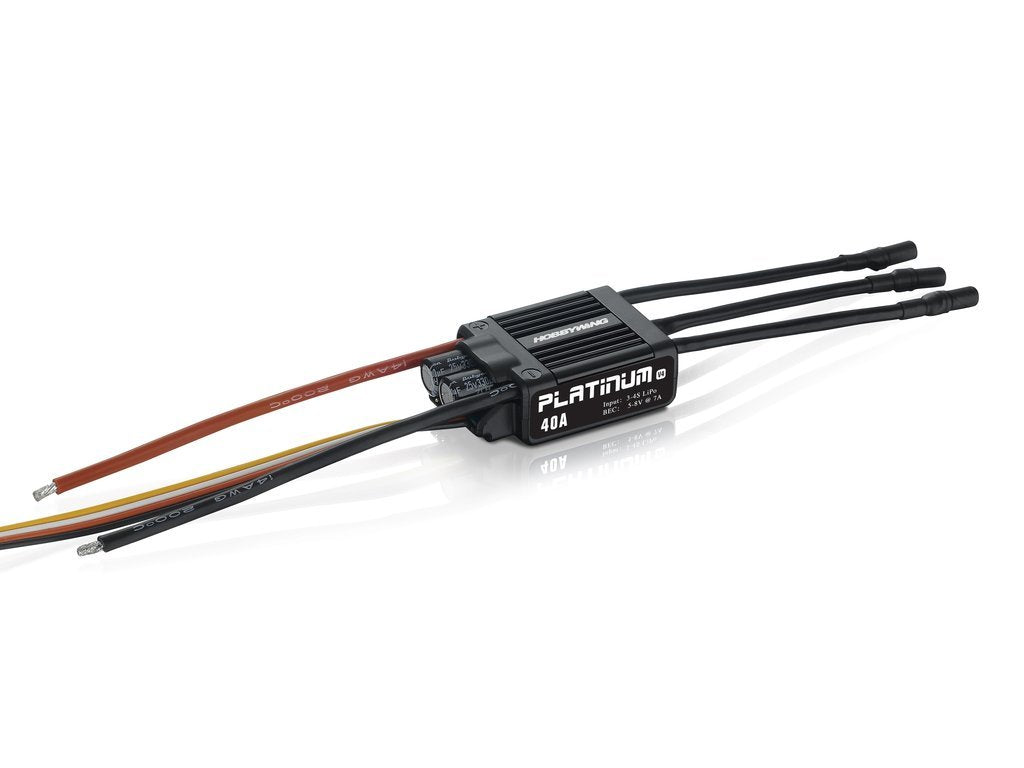

HobbyWing Platinum Pro V4 Series 40A ESC
Perfect for Oxy heli 3 upgrade
- 3-4S LiPo
- Built-in BEC 5V-8V, 7A
- requires LCD program box or OTA Programmer for firmware update / programming (purchase separately). Cannot be programmed via transmitter.
Click here to download the manual for this ESC.
| Model | Platinum 40A ESC V4 |
| Input Voltage | 3-4S LiPo |
| Cont./Peak Current (10s) | 40A/60A |
| (Switch-mode) BEC | Switch Mode:5-8V,7A |
| Separate Programming Port | For connecting LCD Program Box/OTA Programmer |
| Throttle Signal/BEC Output/RPM Signal Transmission Wire(s) | White Throttle Signal Wire/Red & Black BEC Output Wires/ Yellow RPM Signal Transmission Wire |
| Input Wires | Red-14AWG-100mm*1/Black-14AWG-100mm*1 |
| output wires | Black-16AWG-75mm*3 |
| Output connectors | 3.5mm Gold Connectors (Female) |
| Weight/Size | 47g / 48x30x15.4mm |
Compatible only with the following program card:
HobbyWing Multifunction LCD Professional Program Box for Platinum Series ESCs
