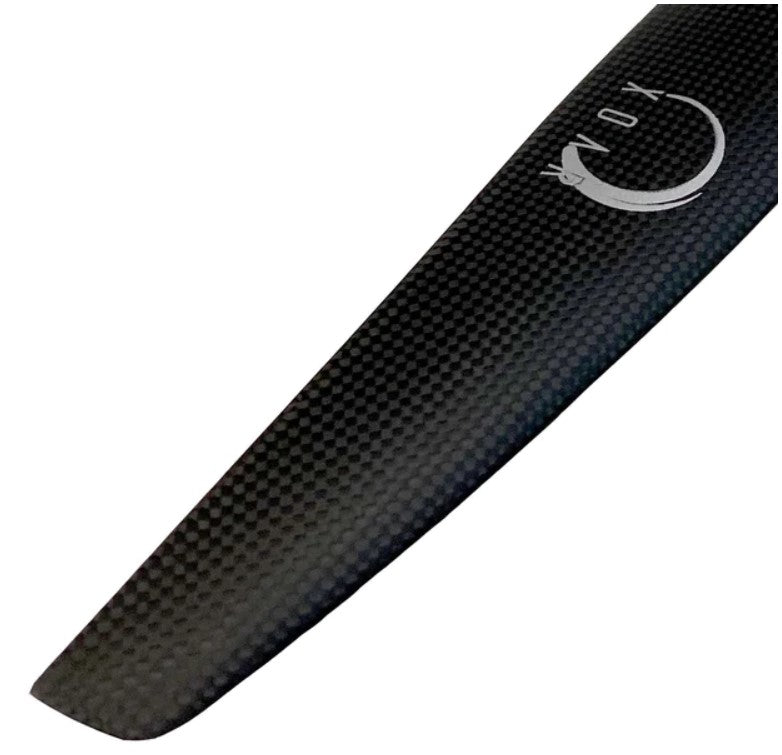

Xoar PJT-1E Series Electric 1K Carbon Fiber Propeller

Choose size from list above.

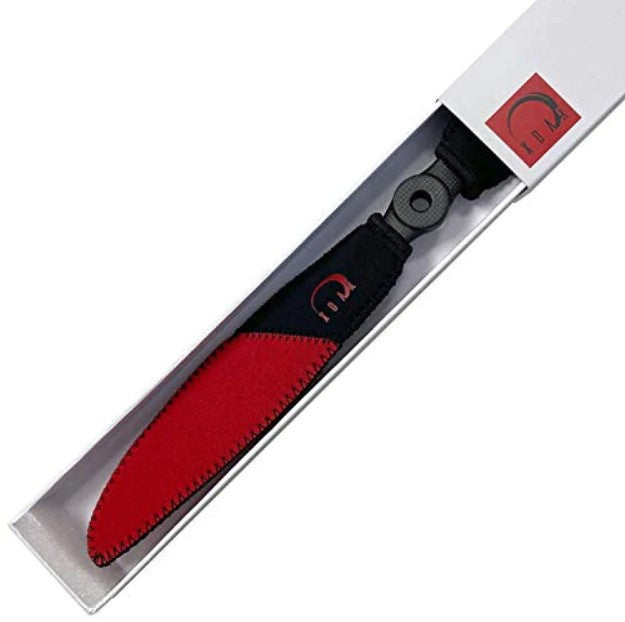

PJT-1E 1K carbon propellers are an upgraded version of the 3K series. Featuring a thinner carbon weave, they have enhanced appearance compared to 3K. 1K props also include prop covers whereas 3K do not.

Xoar PJT1-E is a carbon fiber version of PJN specially designed for electric applications. It is an answer to the pros who are looking to go beyond excellent flight performance. It’s unique design ensures the lightest weight and carbon fiber offers the highest endurance which are the two essential factors when it comes to seamless performance. The lighter the propellers, the less time the props take to spin up and slow down due to less strain on the motors, which in turn yields most accurate performance in maneuvers. This is when the materials helps us to push the envelop because we are able to reduce weight by ~37% yet retaining the strength using carbon fibers combining relentless R&D.

The unique aerodynamic blades are shaped to produce the highest efficiency and stability leveraging the strength of carbon fiber even when compared to Xoar’s own wooden propellers. Each Xoar PJT-E Propeller is manufactured to maintain excellent static and dynamic balance in order to minimize vibrations which in turn produces the highest efficiency.

Features:

  • PREMIUM MATERIAL: Made of Premium 1K Carbon Fiber Fabric. Carbon fiber’s strength is excellent for minimal elongation, breakpoint and distortion, therefore it is the best for high performance RC Planes Propellers.
  • LIGHTWEIGHT: Xoar Carbon Fiber Propellers are constructed with foam filling to ensure the lightest weight with great strength.
  • PRE-BALANCED* : Each Xoar prop is balanced both horizontally and vertically for minimal vibration caused by the airplane propeller.

*Please Note: Final balance check is suggested before flight due to external factors such as temperature, handling during transit may vary the balance of the propeller.

Diameter Pitch Average Net Weight Shaft Diameter
10“ 4.7 8.9 ± 5 g 5mm
12“ 4.5 10.7 ± 5 g 6mm
13“ 6.5 12.6 ± 5 g 6mm
15“ 6 16 ± 5 g 6mm
16“ 7, 10 24.3 ± 5 g 8mm
18“ 8, 10 26.2 ± 5 g 8mm
19“ 10, 12 32.2 ± 5 g 8mm
20“ 10 36.2 ± 5 g 8mm
21“ 10, 13.5 44.8 ± 5 g 8mm
22″ 10, 12 48 ± 5 g 8mm
23″ 8 58.7 ± 5 g 8mm
24″ 10, 13 55.9 ± 5 g 8mm
26″ 4.5, 10 64.5± 5 g 8mm
27.5″ 10,  70 ± 5 g

10mm
28“ 7, 8, 12, 13 ± 5 g 8mm
28″ 10,  79 ± 5 g

10mm

*Suggested Average Net Weight per size is for Reference Only. Actual weight varies among the specification of the prop (diameter x pitch) and other external factors. Please Note: Measuring equipment and method will greatly affect the result.

Additional information

Choose Size

10×4.7, 12×4.5, 13×6.5, 15×6, 16×10, 18×8, 18×10, 19×12, 20×10, 21×10, 22×10, 23×8, 24×10
